Battery Cables Assembles Stock

Explore our catalog of premium marine-grade battery cable assemblies, engineered for durability, reliability, and peak performance in the toughest marine environments.

Marine grade battery cables are specifically designed for use in marine environments. They feature tinned copper conductors for superior corrosion resistance, high conductivity, and durability. These cables are insulated with a thick, flexible PVC jacket, resistant to abrasion, moisture, oil, and salt, ensuring reliable performance in harsh conditions. Ideal for connecting batteries in boats, yachts, and other marine applications.

In this catalogue we show our standard products that are ready to be assemblies in four different ends:

  1. 3/8” Lug on Each End
  2. 5/16” Lug on Each End
  3. 3/8” Lug and Universal Post with boot
  4. 5/16” Lug and Universal Post with boot

Also, they are available in 2-, 4-, and 6-gauge sizes to handle varying power requirements, these marine-grade battery cables offer excellent conductivity and corrosion resistance. Choose from seven lengths -12”, 18”, 24”, 30”, 36”, 48”, and 72” – to suit a wide range of marine applications.

Let’s see our products …

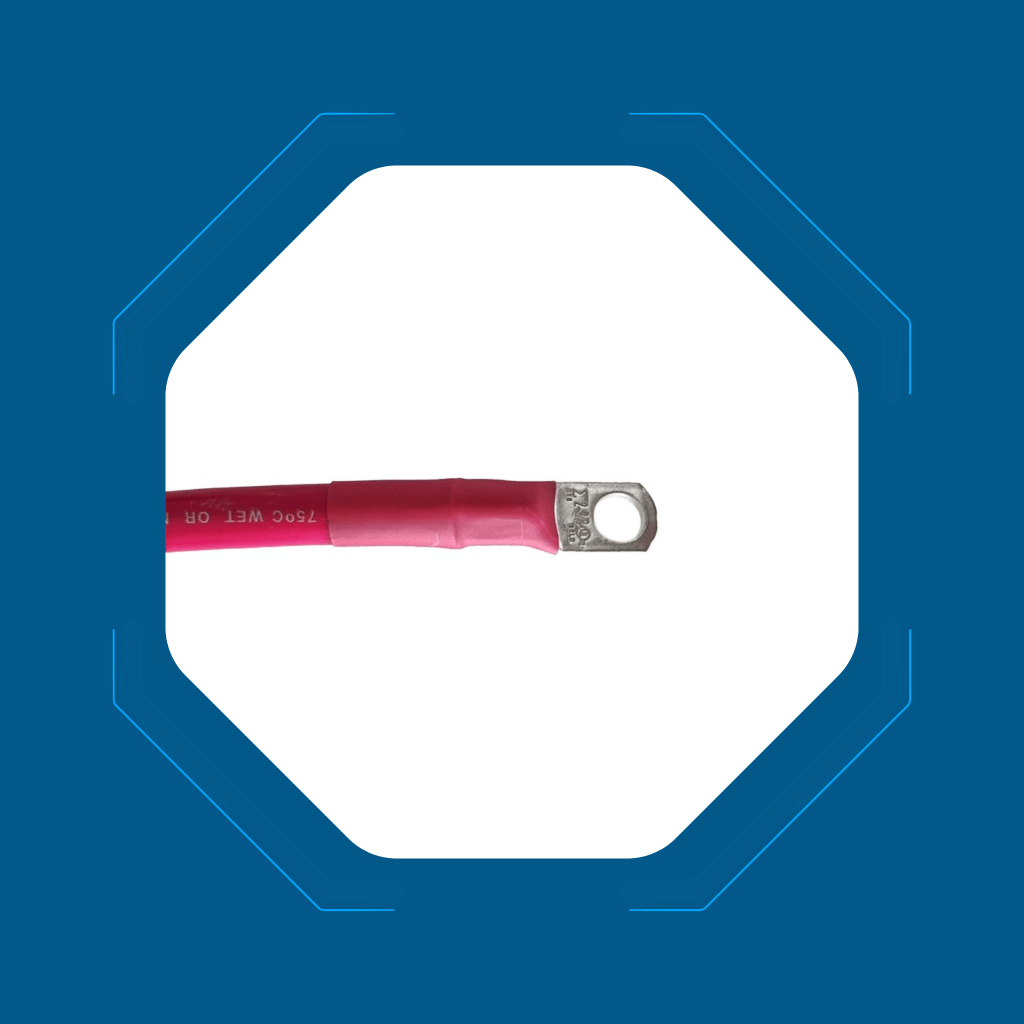

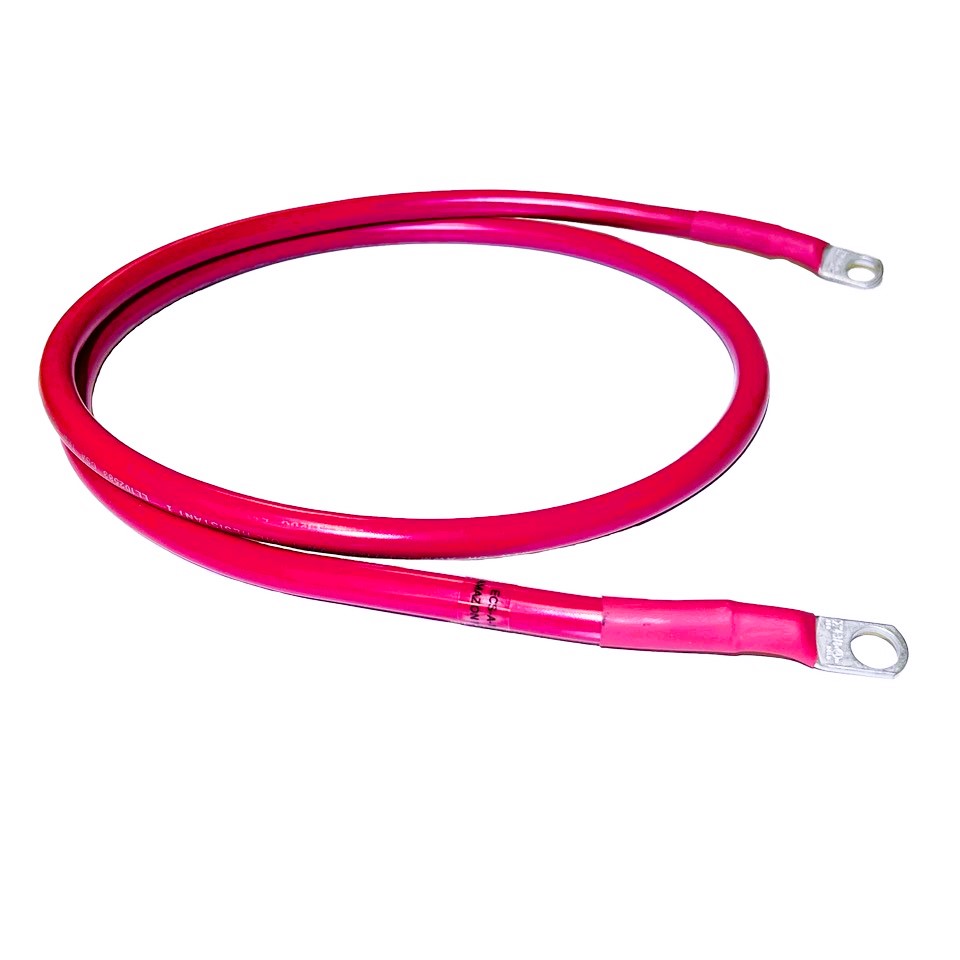

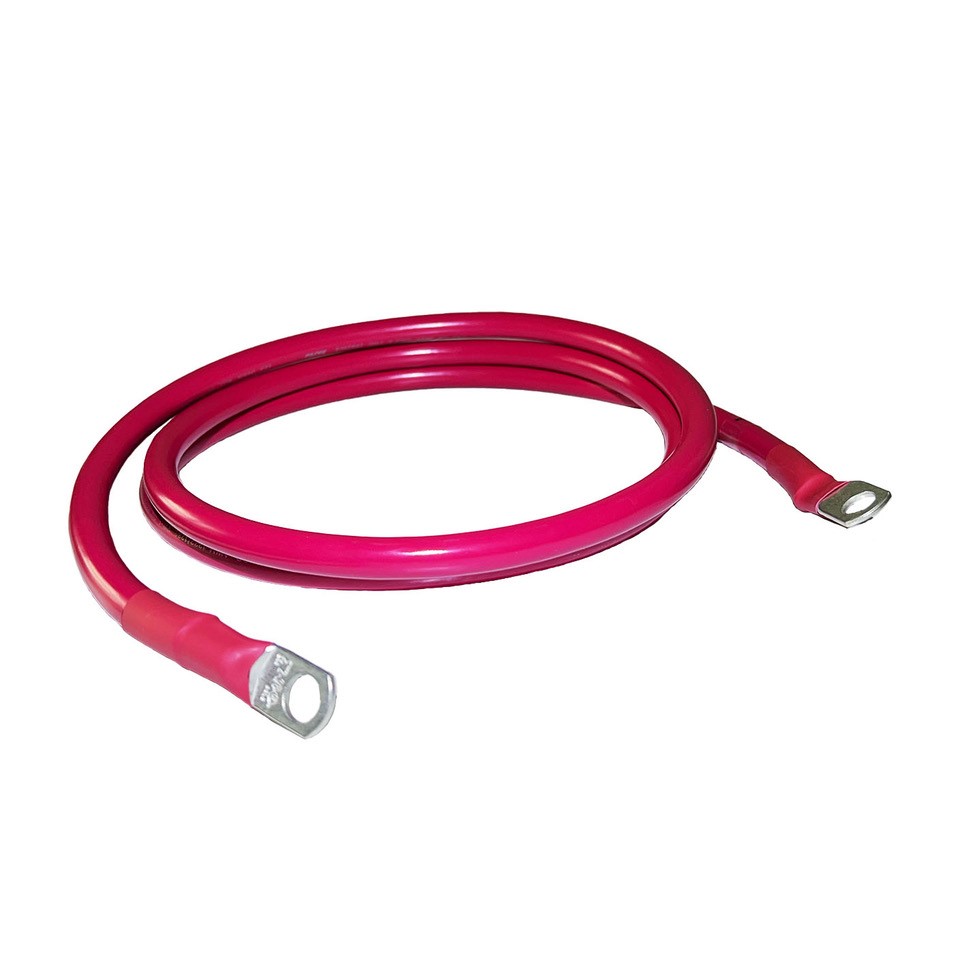

2 AWG Marine Grade Battery Cable, Red with 3/8″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
02-R-01-122 AWG, Red, 12”, 3/8” lug on each end.1
02-R-01-182 AWG, Red, 18”, 3/8” lug on each end.1
02-R-01-242 AWG, Red, 24”, 3/8” lug on each end.1
02-R-01-302 AWG, Red, 30”, 3/8” lug on each end.1
02-R-01-362 AWG, Red, 36”, 3/8” lug on each end.1
02-R-01-482 AWG, Red, 48”, 3/8” lug on each end.1
02-R-01-722 AWG, Red, 72”, 3/8” lug on each end.1

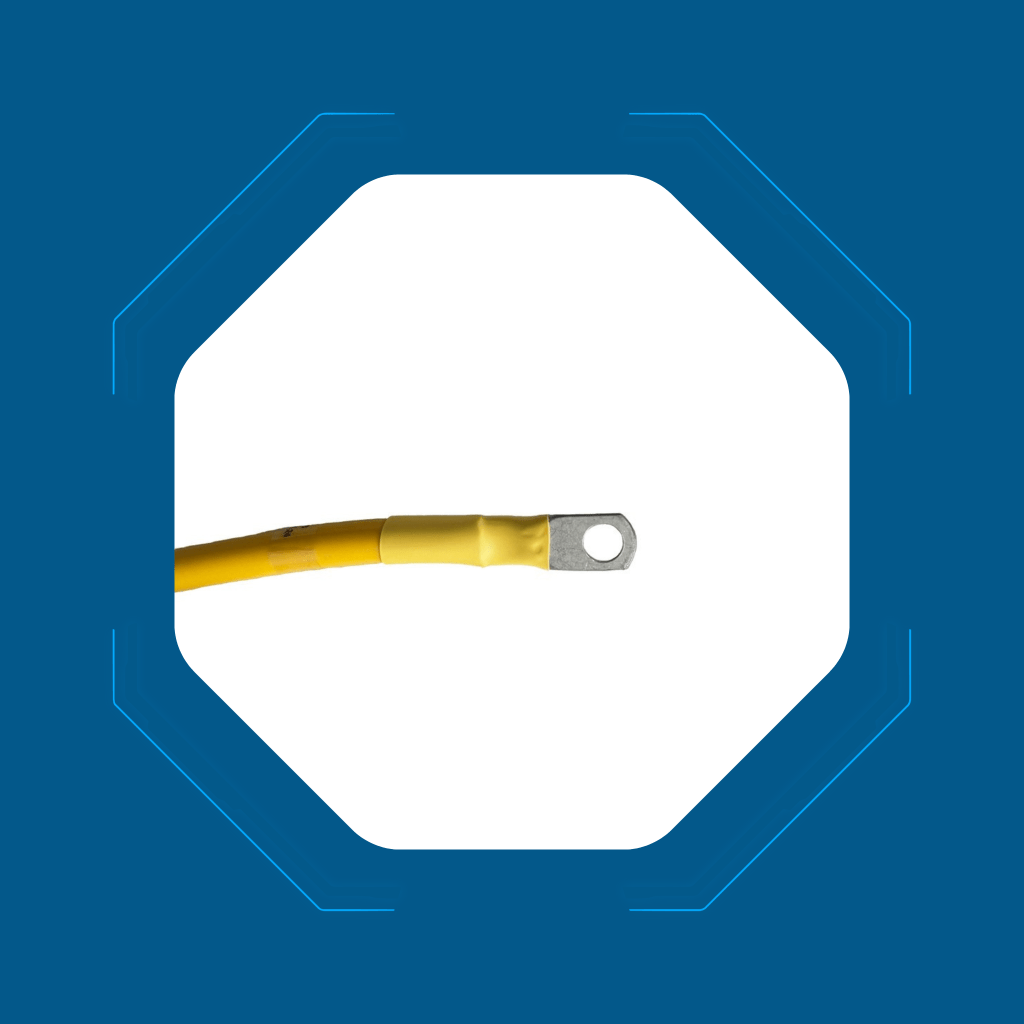

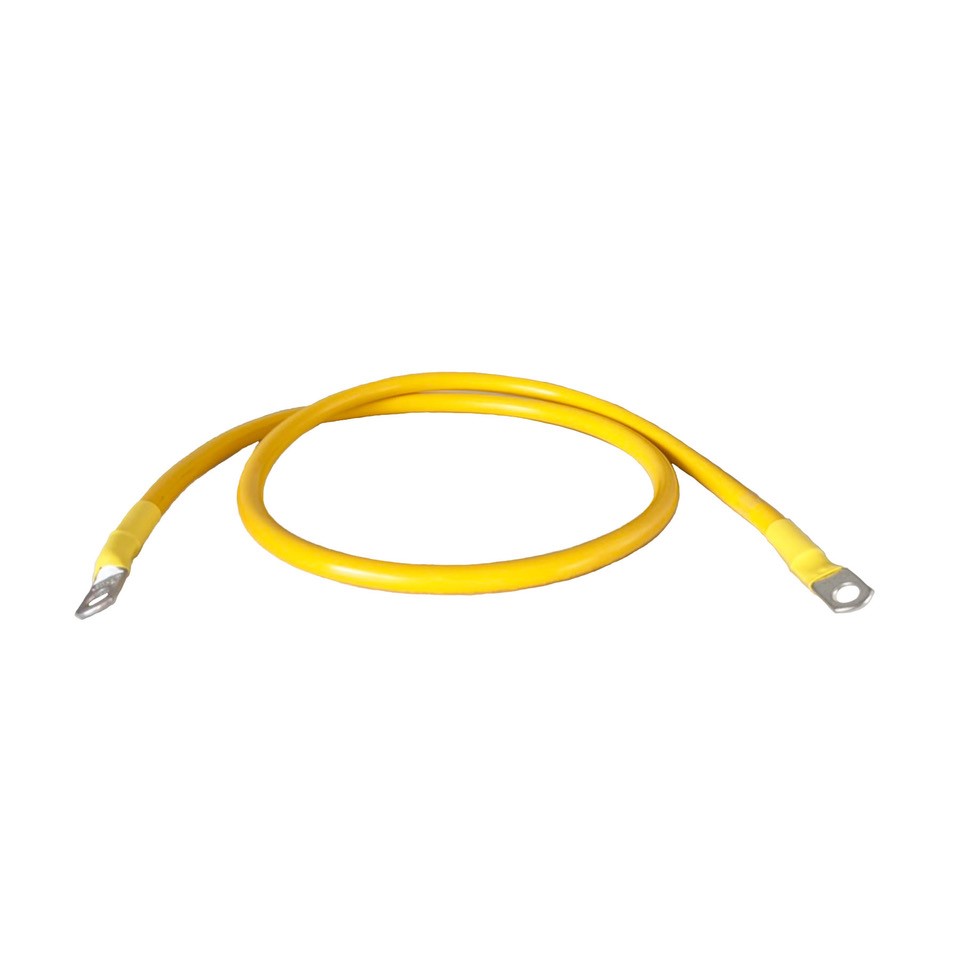

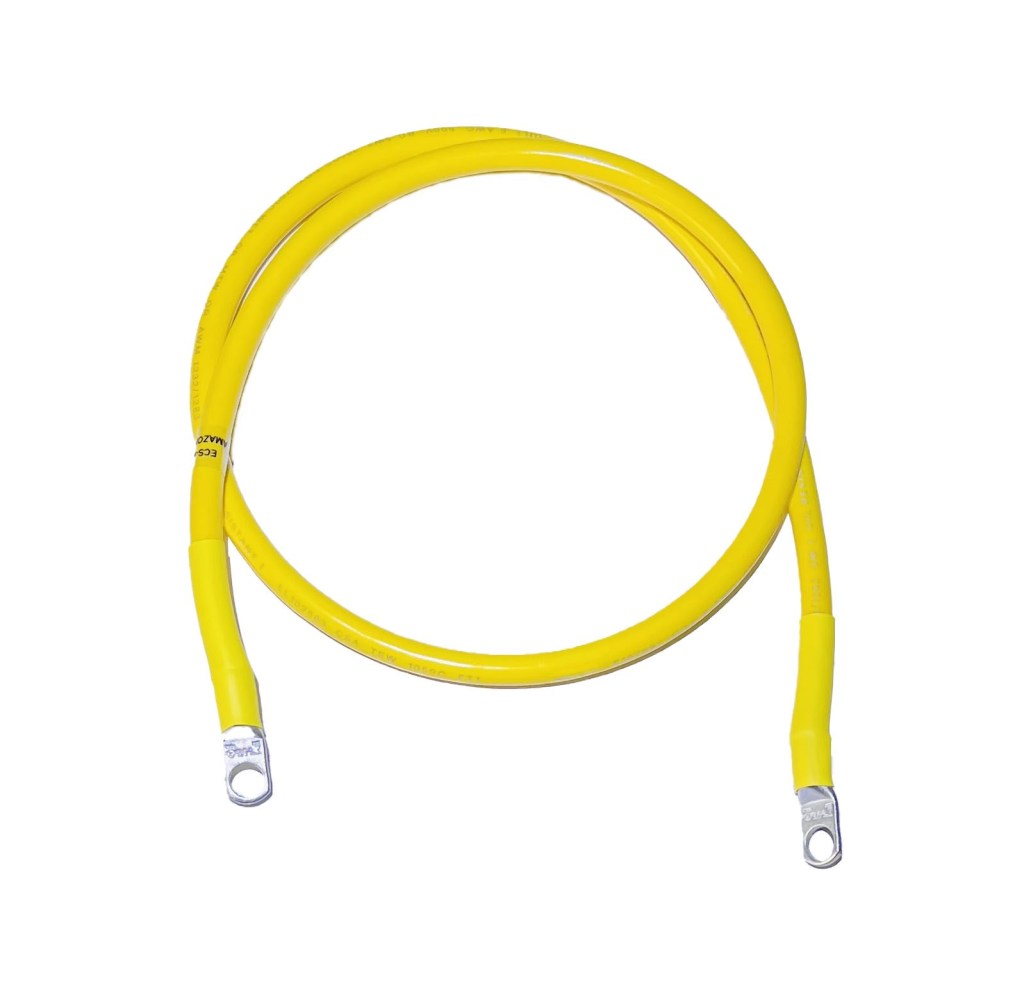

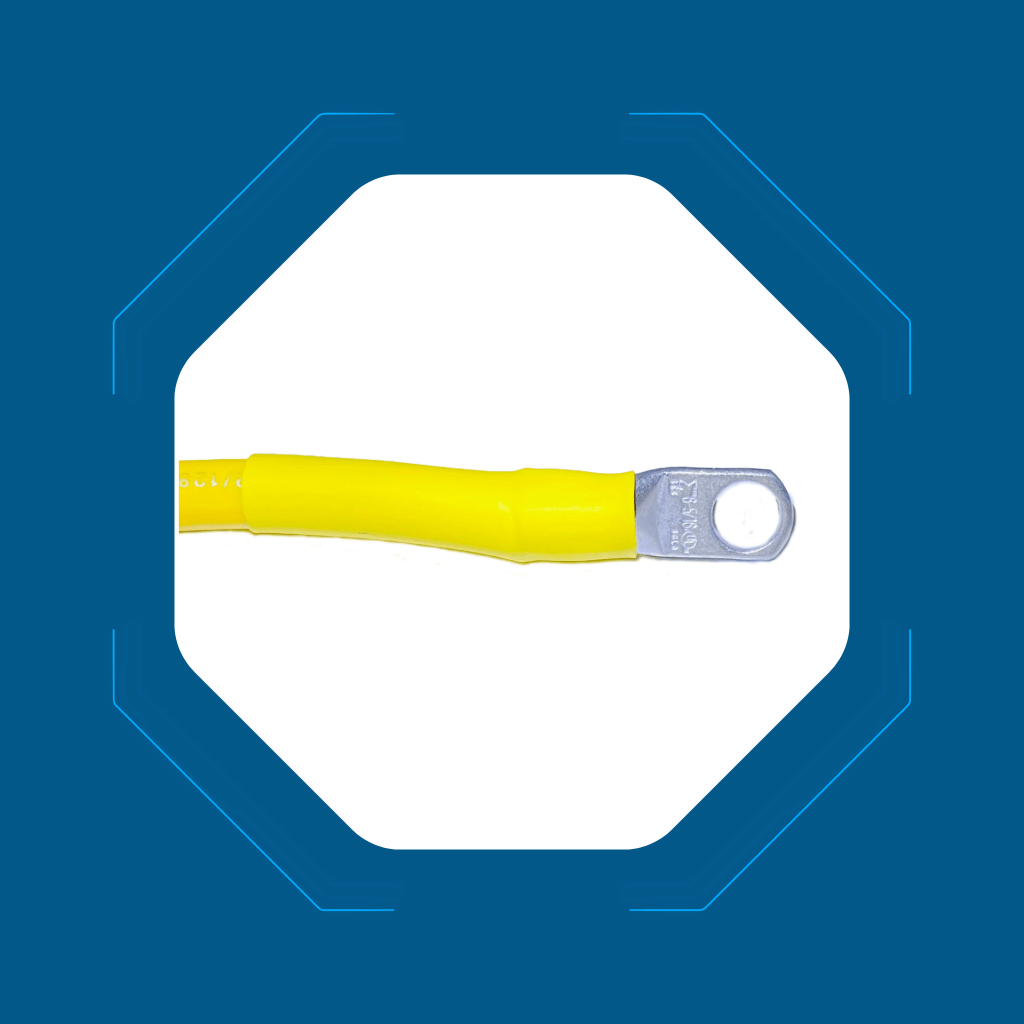

2 AWG Marine Grade Battery Cable, Yellow with 3/8″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
02-Y-01-122 AWG, Yellow, 12”, 3/8” lug on each end.1
02-Y-01-182 AWG, Yellow, 18”, 3/8” lug on each end.1
02-Y-01-242 AWG, Yellow, 24”, 3/8” lug on each end.1
02-Y-01-302 AWG, Yellow, 30”, 3/8” lug on each end.1
02-Y-01-362 AWG, Yellow, 36”, 3/8” lug on each end.1
02-Y-01-482 AWG, Yellow, 48”, 3/8” lug on each end.1
02-Y-01-722 AWG, Yellow, 72”, 3/8” lug on each end.1

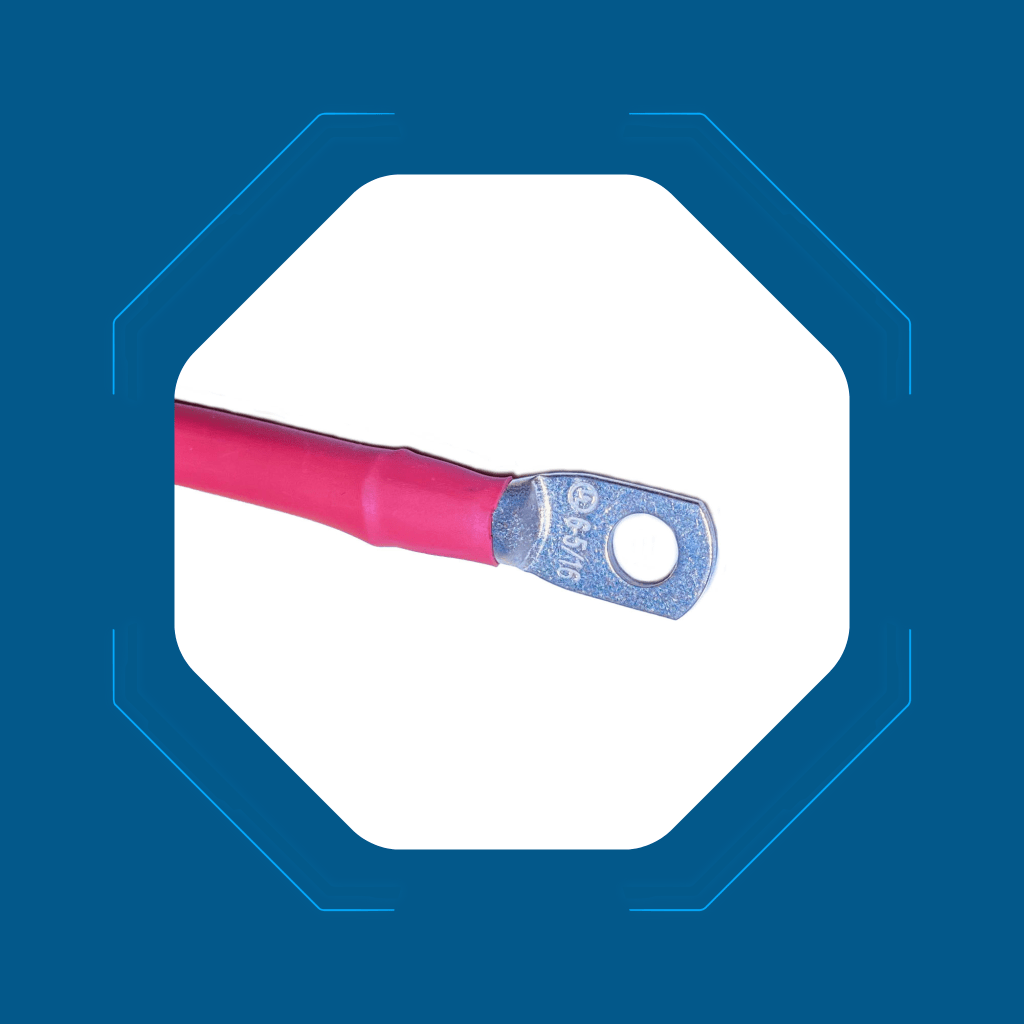

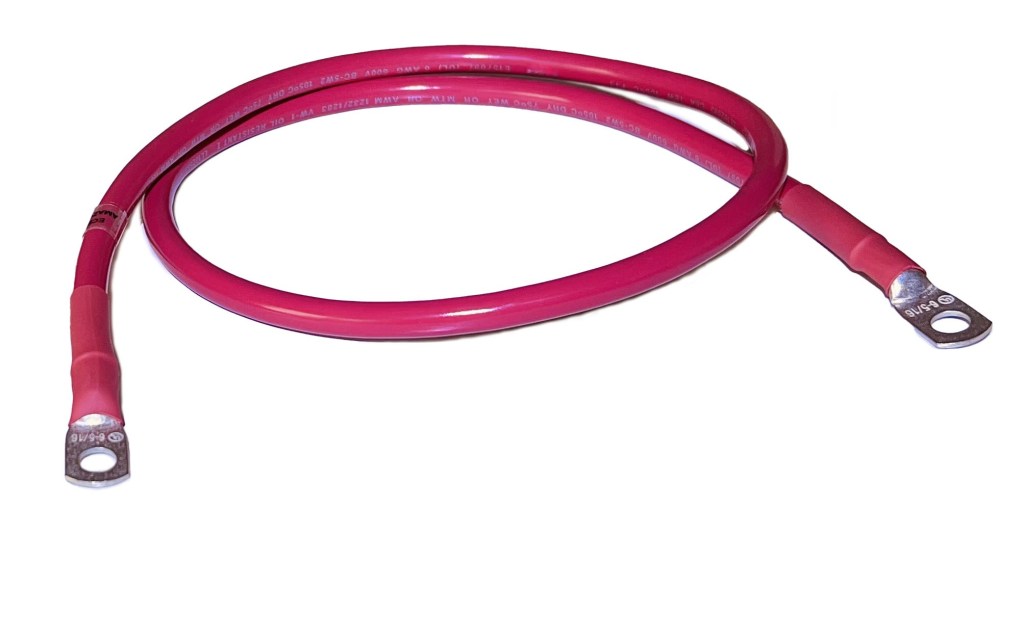

2 AWG Marine Grade Battery Cable, Red with 5/16″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
02-R-02-122 AWG, Red, 12”, 5/16” lug on each end.1
02-R-02-182 AWG, Red, 18”, 5/16” lug on each end.1
02-R-02-242 AWG, Red, 24”, 5/16” lug on each end.1
02-R-02-302 AWG, Red, 30”, 5/16” lug on each end.1
02-R-02-362 AWG, Red, 36”, 5/16” lug on each end.1
02-R-02-482 AWG, Red, 48”, 5/16” lug on each end.1
02-R-02-722 AWG, Red, 72”, 5/16” lug on each end.1

2 AWG Marine Grade Battery Cable, Yellow with 5/16″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
02-Y-02-122 AWG, Yellow, 12”, 5/16” lug on each end.1
02-Y-02-182 AWG, Yellow, 18”, 5/16” lug on each end.1
02-Y-02-242 AWG, Yellow, 24”, 5/16” lug on each end.1
02-Y-02-302 AWG, Yellow, 30”, 5/16” lug on each end.1
02-Y-02-362 AWG, Yellow, 36”, 5/16” lug on each end.1
02-Y-02-482 AWG, Yellow, 48”, 5/16” lug on each end.1
02-Y-02-722 AWG, Yellow, 72”, 5/16” lug on each end.1

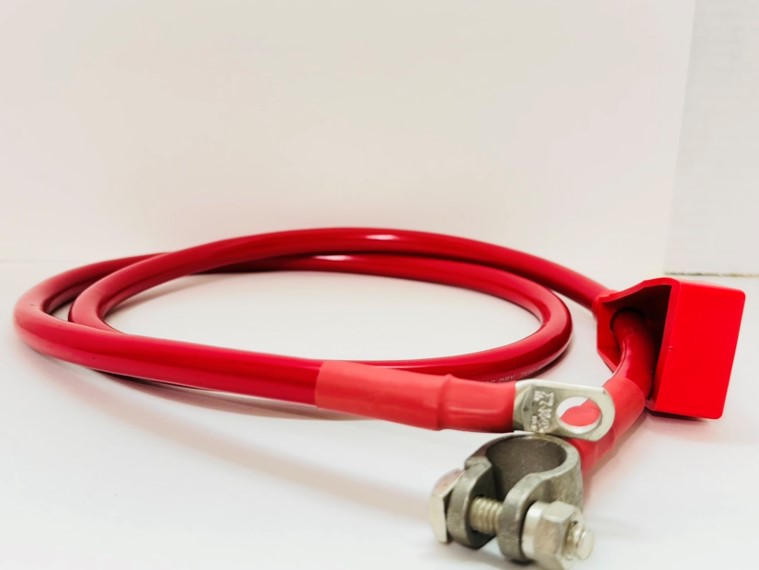

2 AWG Marine Grade Battery Cable, Red with 3/8″ Lug and Universal Post with Boot

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
02-R-03-122 AWG, Red, 12”, 3/8” lug with Universal Post.1
02-R-03-182 AWG, Red, 18”, 3/8” lug with Universal Post.1
02-R-03-242 AWG, Red, 24”, 3/8” lug with Universal Post.1
02-R-03-302 AWG, Red, 30”, 3/8” lug with Universal Post.1
02-R-03-362 AWG, Red, 36”, 3/8” lug with Universal Post.1
02-R-03-482 AWG, Red, 48”, 3/8” lug with Universal Post.1
02-R-03-722 AWG, Red, 72”, 3/8” lug with Universal Post.1

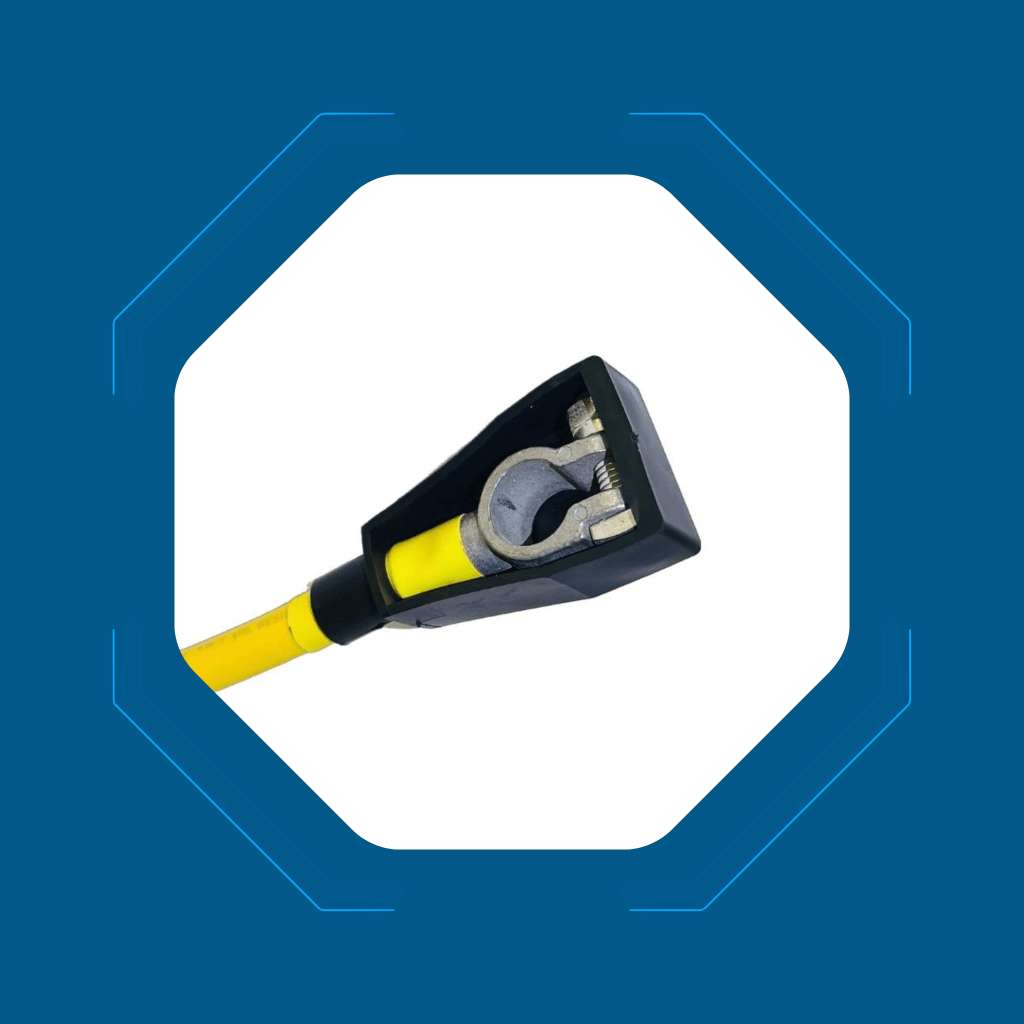

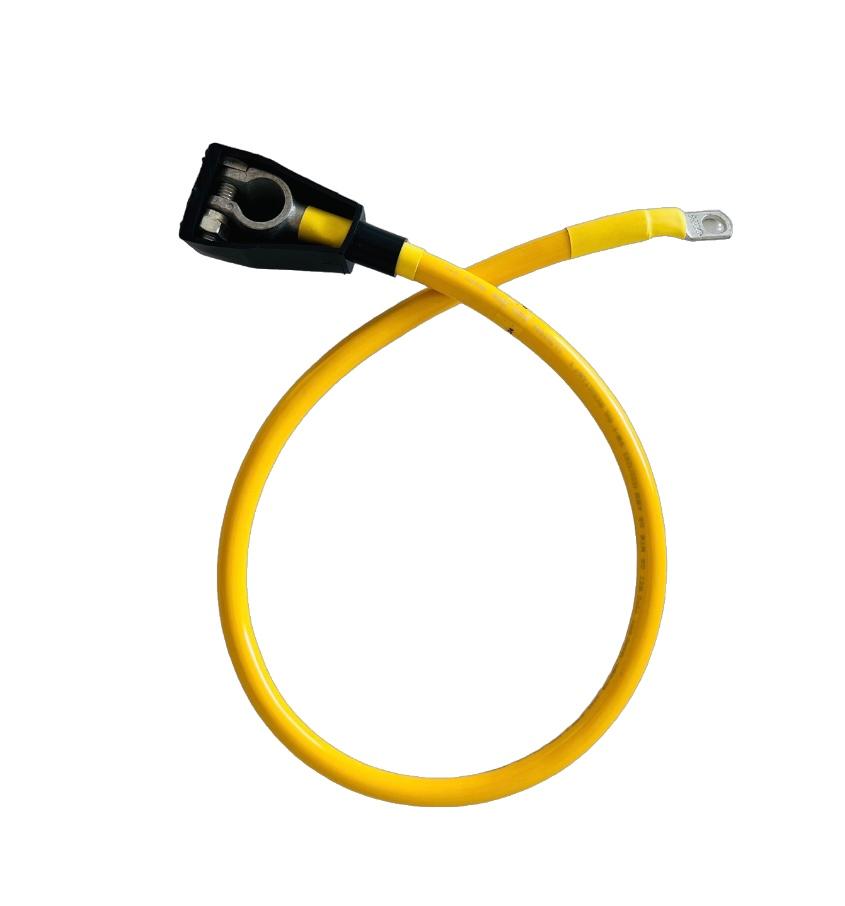

2 AWG Marine Grade Battery Cable, Yellow with 3/8″ Lug with Universal Post

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
02-Y-03-122 AWG, Yellow, 12”, 3/8” lug with Universal Post.1
02-Y-03-182 AWG, Yellow, 18”, 3/8” lug with Universal Post.1
02-Y-03-242 AWG, Yellow, 24”, 3/8” lug with Universal Post.1
02-Y-03-302 AWG, Yellow, 30”, 3/8” lug with Universal Post.1
02-Y-03-362 AWG, Yellow, 36”, 3/8” lug with Universal Post.1
02-Y-03-482 AWG, Yellow, 48”, 3/8” lug with Universal Post.1
02-Y-03-722 AWG, Yellow, 72”, 3/8” lug with Universal Post.1

2 AWG Marine Grade Battery Cable, Red with 5/16″ Lug and Universal Post with Boot

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
02-R-0-4122 AWG, Red, 12”, 5/16” lug with Universal Post.1
02-R-04-182 AWG, Red, 18”, 5/16” lug with Universal Post.1
02-R-04-242 AWG, Red, 24”, 5/16” lug with Universal Post.1
02-R-04-302 AWG, Red, 30”, 5/16” lug with Universal Post.1
02-R-04-362 AWG, Red, 36”, 5/16” lug with Universal Post.1
02-R-04-482 AWG, Red, 48”, 5/16” lug with Universal Post.1
02-R-04-722 AWG, Red, 72”, 5/16” lug with Universal Post.1

2 AWG Marine Grade Battery Cable, Yellow with 5/16″ Lug with Universal Post

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
02-Y-04-122 AWG, Yellow, 12”, 5/16” lug with Universal Post.1
02-Y-04-182 AWG, Yellow, 18”, 5/16” lug with Universal Post.1
02-Y-04-242 AWG, Yellow, 24”, 5/16” lug with Universal Post.1
02-Y-04-302 AWG, Yellow, 30”, 5/16” lug with Universal Post.1
02-Y-04-362 AWG, Yellow, 36”, 5/16” lug with Universal Post.1
02-Y-04-482 AWG, Yellow, 48”, 5/16” lug with Universal Post.1
02-Y-04-722 AWG, Yellow, 72”, 5/16” lug with Universal Post.1

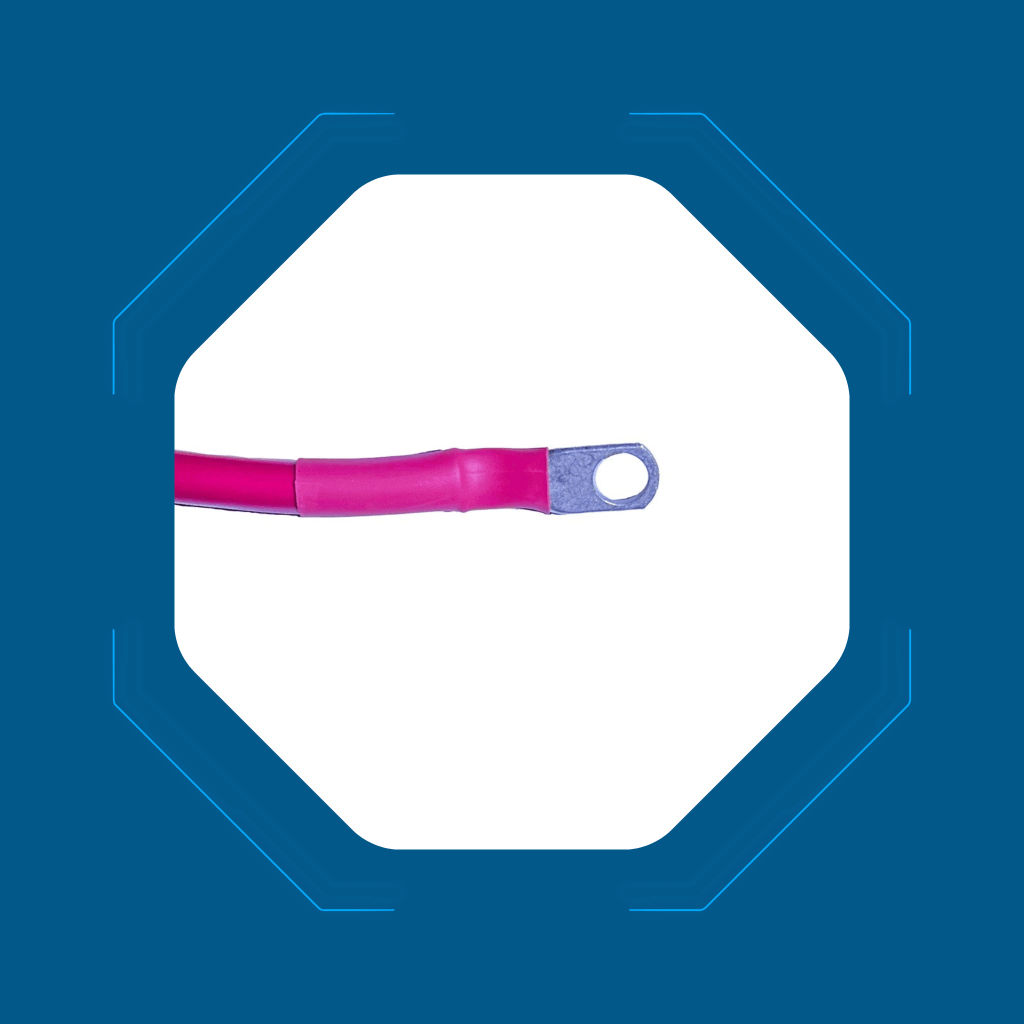

4 AWG Marine Grade Battery Cable, Red with 3/8″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
04-R-01-124 AWG, Red, 12”, 3/8” lug on each end.1
04-R-01-184 AWG, Red, 18”, 3/8” lug on each end.1
04-R-01-244 AWG, Red, 24”, 3/8” lug on each end.1
04-R-01-304 AWG, Red, 30”, 3/8” lug on each end.1
04-R-01-364 AWG, Red, 36”, 3/8” lug on each end.1
04-R-01-484 AWG, Red, 48”, 3/8” lug on each end.1
04-R-01-724 AWG, Red, 72”, 3/8” lug on each end.1

4 AWG Marine Grade Battery Cable, Yellow with 3/8″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
04-Y-01-124 AWG, Yellow, 12”, 3/8” lug on each end.1
04-Y-01-184 AWG, Yellow, 18”, 3/8” lug on each end.1
04-Y-01-244 AWG, Yellow, 24”, 3/8” lug on each end.1
04-Y-01-304 AWG, Yellow, 30”, 3/8” lug on each end.1
04-Y-01-364 AWG, Yellow, 36”, 3/8” lug on each end.1
04-Y-01-484 AWG, Yellow, 48”, 3/8” lug on each end.1
04-Y-01-724 AWG, Yellow, 72”, 3/8” lug on each end.1

4 AWG Marine Grade Battery Cable, Red with 5/16″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
04-R-02-124 AWG, Red, 12”, 5/16” lug on each end.1
04-R-02-184 AWG, Red, 18”, 5/16” lug on each end.1
04-R-02-244 AWG, Red, 24”, 5/16” lug on each end.1
04-R-02-304 AWG, Red, 30”, 5/16” lug on each end.1
04-R-02-364 AWG, Red, 36”, 5/16” lug on each end.1
04-R-02-484 AWG, Red, 48”, 5/16” lug on each end.1
04-R-02-724 AWG, Red, 72”, 5/16” lug on each end.1

4 AWG Marine Grade Battery Cable, Yellow with 5/16″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
04-Y-02-124 AWG, Yellow, 12”, 5/16” lug on each end.1
04-Y-02-184 AWG, Yellow, 18”, 5/16” lug on each end.1
04-Y-02-244 AWG, Yellow, 24”, 5/16” lug on each end.1
04-Y-02-304 AWG, Yellow, 30”, 5/16” lug on each end.1
04-Y-02-364 AWG, Yellow, 36”, 5/16” lug on each end.1
04-Y-02-484 AWG, Yellow, 48”, 5/16” lug on each end.1
04-Y-02-724 AWG, Yellow, 72”, 5/16” lug on each end.1

4 AWG Marine Grade Battery Cable, Red with 3/8″ Lug and Universal Post with Boot

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
04-R-03-124 AWG, Red, 12”, 3/8” lug with Universal Post.1
04-R-03-184 AWG, Red, 18”, 3/8” lug with Universal Post.1
04-R-03-244 AWG, Red, 24”, 3/8” lug with Universal Post.1
04-R-03-304 AWG, Red, 30”, 3/8” lug with Universal Post.1
04-R-03-364 AWG, Red, 36”, 3/8” lug with Universal Post.1
04-R-03-484 AWG, Red, 48”, 3/8” lug with Universal Post.1
04-R-03-724 AWG, Red, 72”, 3/8” lug with Universal Post.1

4 AWG Marine Grade Battery Cable, Yellow with 3/8″ Lug with Universal Post

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
04-Y-03-124 AWG, Yellow, 12”, 3/8” lug with Universal Post.1
04-Y-03-184 AWG, Yellow, 18”, 3/8” lug with Universal Post.1
04-Y-03-244 AWG, Yellow, 24”, 3/8” lug with Universal Post.1
04-Y-03-304 AWG, Yellow, 30”, 3/8” lug with Universal Post.1
04-Y-03-364 AWG, Yellow, 36”, 3/8” lug with Universal Post.1
04-Y-03-484 AWG, Yellow, 48”, 3/8” lug with Universal Post.1
04-Y-03-724 AWG, Yellow, 72”, 3/8” lug with Universal Post.1

4 AWG Marine Grade Battery Cable, Red with 5/16″ Lug and Universal Post with Boot

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
04-R-0-4124 AWG, Red, 12”, 5/16” lug with Universal Post.1
04-R-04-184 AWG, Red, 18”, 5/16” lug with Universal Post.1
04-R-04-244 AWG, Red, 24”, 5/16” lug with Universal Post.1
04-R-04-304 AWG, Red, 30”, 5/16” lug with Universal Post.1
04-R-04-364 AWG, Red, 36”, 5/16” lug with Universal Post.1
04-R-04-484 AWG, Red, 48”, 5/16” lug with Universal Post.1
04-R-04-724 AWG, Red, 72”, 5/16” lug with Universal Post.1

4 AWG Marine Grade Battery Cable, Yellow with 5/16″ Lug with Universal Post

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
04-Y-04-124 AWG, Yellow, 12”, 5/16” lug with Universal Post.1
04-Y-04-184 AWG, Yellow, 18”, 5/16” lug with Universal Post.1
04-Y-04-244 AWG, Yellow, 24”, 5/16” lug with Universal Post.1
04-Y-04-304 AWG, Yellow, 30”, 5/16” lug with Universal Post.1
04-Y-04-364 AWG, Yellow, 36”, 5/16” lug with Universal Post.1
04-Y-04-484 AWG, Yellow, 48”, 5/16” lug with Universal Post.1
04-Y-04-724 AWG, Yellow, 72”, 5/16” lug with Universal Post.1

6 AWG Marine Grade Battery Cable, Red with 5/16″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
06-R-02-126 AWG, Red, 12”, 5/16” lug on each end.1
06-R-02-186 AWG, Red, 18”, 5/16” lug on each end.1
06-R-02-246 AWG, Red, 24”, 5/16” lug on each end.1
06-R-02-306 AWG, Red, 30”, 5/16” lug on each end.1
06-R-02-366 AWG, Red, 36”, 5/16” lug on each end.1
06-R-02-486 AWG, Red, 48”, 5/16” lug on each end.1
06-R-02-726 AWG, Red, 72”, 5/16” lug on each end.1

4 AWG Marine Grade Battery Cable, Yellow with 5/16″ Lug on Each End

Features: UL Approved Battery Cable (Type III Stranded Tinned Copper), Heat Shrink Custom Lengths and Configurations Available, Easy to bend and route, Excellent flexibility with the durable properties of PVC

Cables Compliances: UL Standard 1426 BC-5W2, AWM 1232/1283, MTW, CSA: TEW, ABYC: E-11.15, Coast Guard: 33 CFR part 183 Subpart 1

Crimps Compliances: Exceed UL 486 and MIL-T-7928

Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K; Insulation: -20 °C to 105 °C Flexible color coded PVC; Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil; Voltage Rating: 600-V; Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Product NumberProduct NameOrden Unit
06-Y-02-124 AWG, Yellow, 12”, 5/16” lug on each end.1
06-Y-02-186 AWG, Yellow, 18”, 5/16” lug on each end.1
06-Y-02-246 AWG, Yellow, 24”, 5/16” lug on each end.1
06-Y-02-306 AWG, Yellow, 30”, 5/16” lug on each end.1
06-Y-02-366 AWG, Yellow, 36”, 5/16” lug on each end.1
06-Y-02-486 AWG, Yellow, 48”, 5/16” lug on each end.1
06-Y-02-726 AWG, Yellow, 72”, 5/16” lug on each end.1

We invite you to send us your Quote Request today to explore exclusive discounts and promotions tailored to your needs!

Contact Us

purchasingservices@elecogs.com

Opening Hours

Monday
9:00 am – 5:00 pm
Tuesday
9:00 am – 5:00 pm
Wednesday
9:00 am – 5:00 pm
Thursday
9:00 am – 5:00 pm
Friday
9:00 am – 5:00 pm
Saturday
Closed
Sunday
Closed
